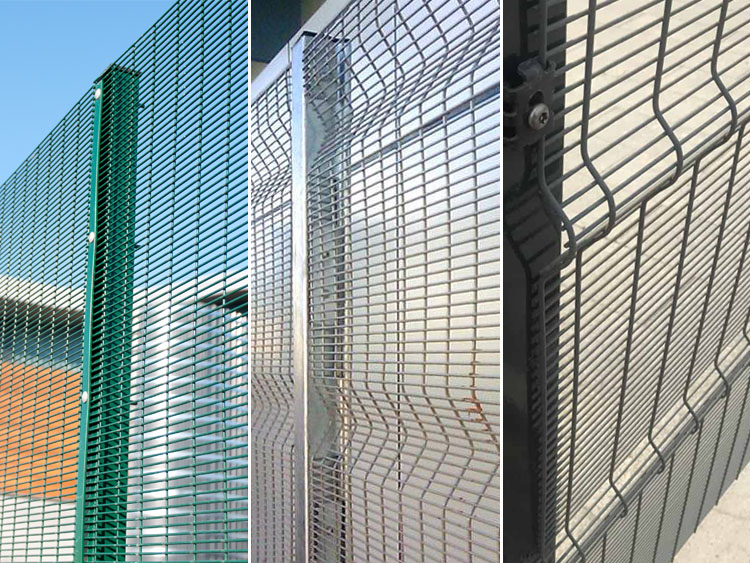

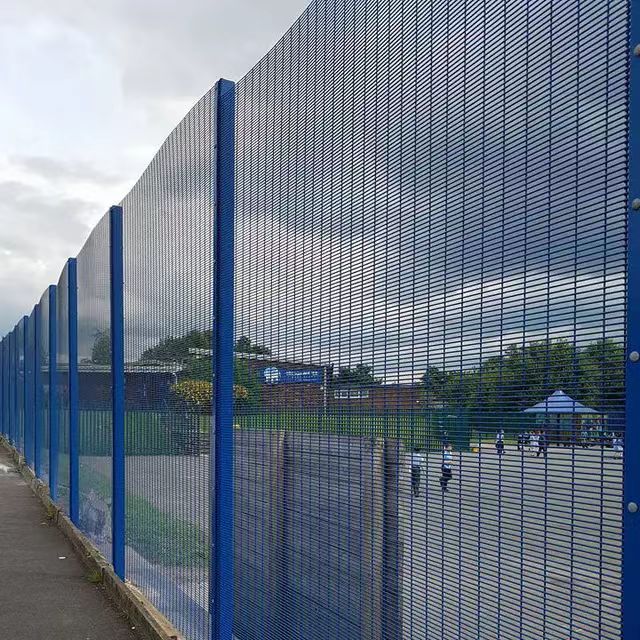

Anti climb fence is a kind of high security fence,its hole is so small that people can’t pass it through fingers,so it has high

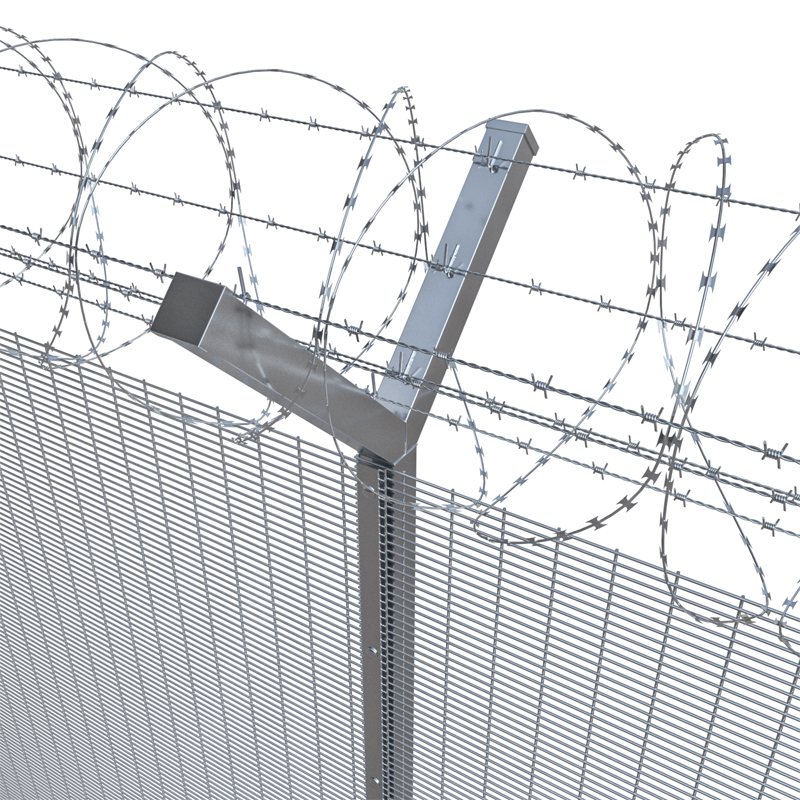

security, anti-theft and other characteristics,we also have matching barbed wire, razor wire,electric wire and other
products,please contact us any time if you want to get customized fence. The mesh can be flat or bent. Generally, one of the height or width is not more than 2.4m, so as to facilitate cabinet installation.
|
Panel height
|
1.8m, 2.1m, 2.4m, 3m or customized
|
|
Panel width
|
2.2m, 2.4m, 3m or customized
|
|
Hole size
|
12.7×76.2mm, 12.5x75mm or customized
|
|
Wire Thickness
|
4.0mm or customized
|
|
Post length
|
2700mm, 3000mm, 3600mm or customized
|
|
Post size
|
60x60mm, 60x80mm, 80x80mm or customized
|
|
Material
|
Steel wire
|
|
Surface treatment
|
Powder coated or PVC coated or galvanized
|
Installation of Anti-Climb Fence
• Panels could be overlapped 75mm minimum at each post and fastened with a slotted clamp bar and bolts.
• Panels could be bind together without overlap but by brackets.
• Spacing between brackets in post would better be 0.3 m.
• A full installation guide is available under request.
