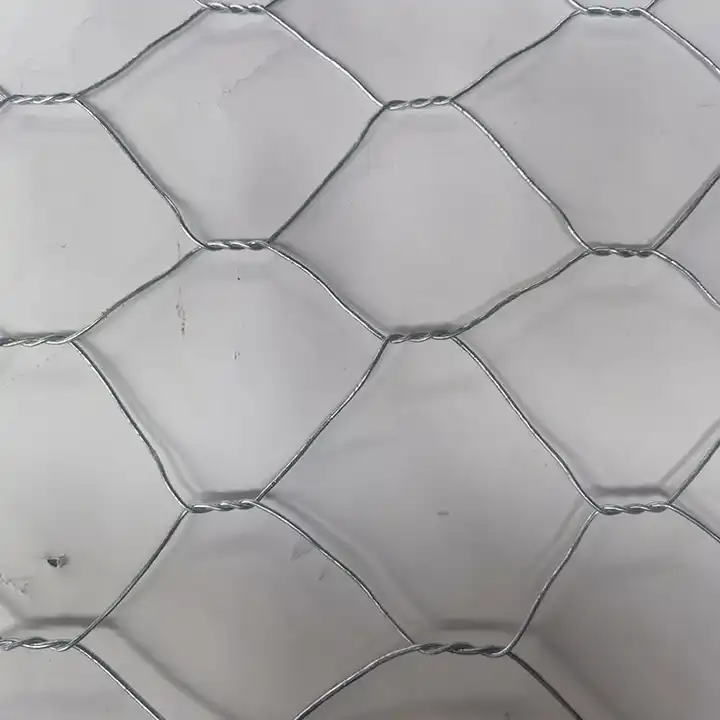

Gabion boxes are made of heavy hexagonal wire nettings. The wire diameter size depends on the opening size of heavy hexagonal wire nettings.The coating can be hot-dipped galvanized, Zinc-Al alloy or PVC coated, etc. Feather: Economic, Simple installation,

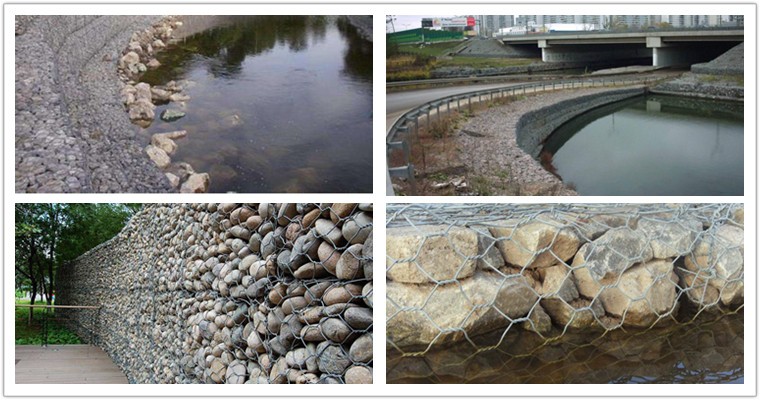

Weatherproof, No collapse, Good penetrability& durability, corrosion-resistance etc. Gabion boxes applications: Control and guide
of water or flood Flood bank or guiding bank Preventing of rock breaking Water and soil protection Bridge protection Strengthening
structure of soil Protection engineering of seaside area.

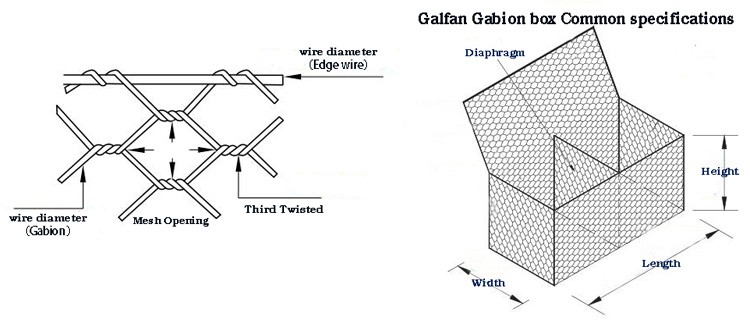

Specification
|
Hexagonal Wire Netting Gabions
|
||||
|
Opening(mm)
|
Body wire(mm)
|
Edge wire(mm)
|
Lacing wire(mm)
|
Max. width
|
|
60X80
|
2.0-2.8
|
3.0-4.0
|
2.0-2.2
|
4M
|
|
80X100
|
2.0-3.0
|
3.0-4.0
|
2.0-2.2
|
4M
|
|
80X120
|
2.0-3.0
|
3.0-4.0
|
2.0-2.2
|
4M
|
|
100X120
|
2.0-3.0
|
3.0-4.0
|
2.0-2.2
|
4M
|
|
100X150
|
2.0-3.0
|
3.0-4.0
|
2.0-2.2
|
4M
|
|
120X150
|
2.0-3.0
|
3.0-4.0
|
2.0-2.2
|
4M
|
|
Gabions’ sizes
|
|||||
|
Length(m)
|
Width(m)
|
Height(m)
|
Diaphragm
|
Volume(m2)
|
Tolerance
|
|
2.0
|
1.0
|
0.15-0.3
|
1
|
0.3-0.6
|
Length:+/-3% Width:+/-5% Height:+/-5% |
|
3.0
|
1.0
|
0.15-0.3
|
2
|
0.45-0.9
|
|
|
4.0
|
1.0
|
0.15-0.3
|
3
|
0.6-1.2
|
|
|
2.0
|
1.0
|
0.5
|
1
|
1.0
|
|
|
3.0
|
1.0
|
0.5
|
2
|
1.5
|
|
|
4.0
|
1.0
|
0.5
|
3
|
2.0
|
|
|
1.0
|
1.0
|
1.0
|
0
|
1.0
|
|
|
1.5
|
1.0
|
1.0
|
0
|
1.5
|
|
|
2.0
|
1.0
|
1.0
|
1
|
2.0
|
|
|
3.0
|
1.0
|
1.0
|
2
|
3.0
|
|
|
4.0
|
1.0
|
1.0
|
3
|
4.0
|
|
Post time: Oct-25-2023
