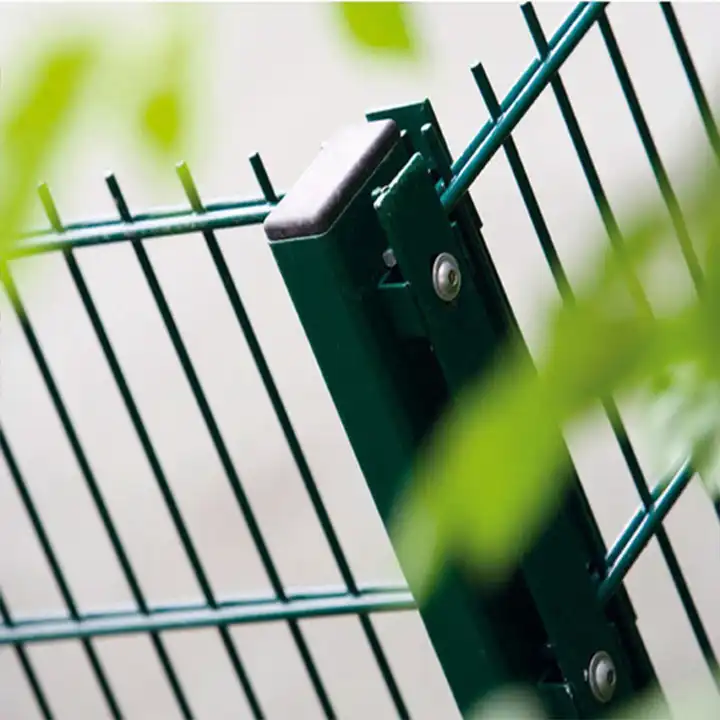

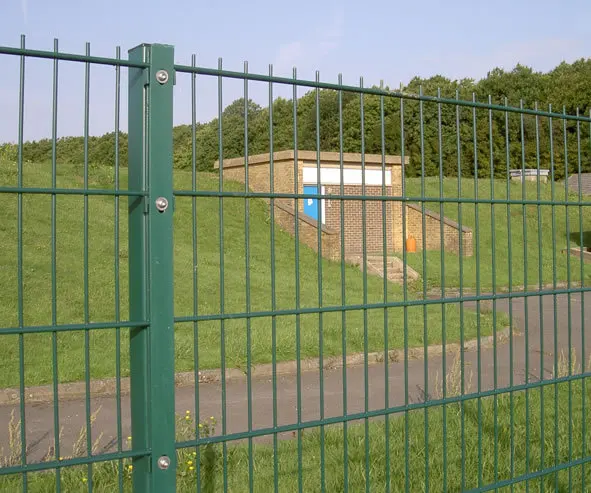

Welded double wire fence, also called 2D security fence, twin wire panel fencing. It is quite popular in Europe countries, like
German. Looked from far away, the wine wire panel is like the regular fencing panel. Nevertheless, unlike traditional welded wire fence as 358 security fence and euro fence, 2D security fence panel welded with two horizontal wires is particularly strong and firm.
Surface Treatment :
A. Hot dipped galvanized:

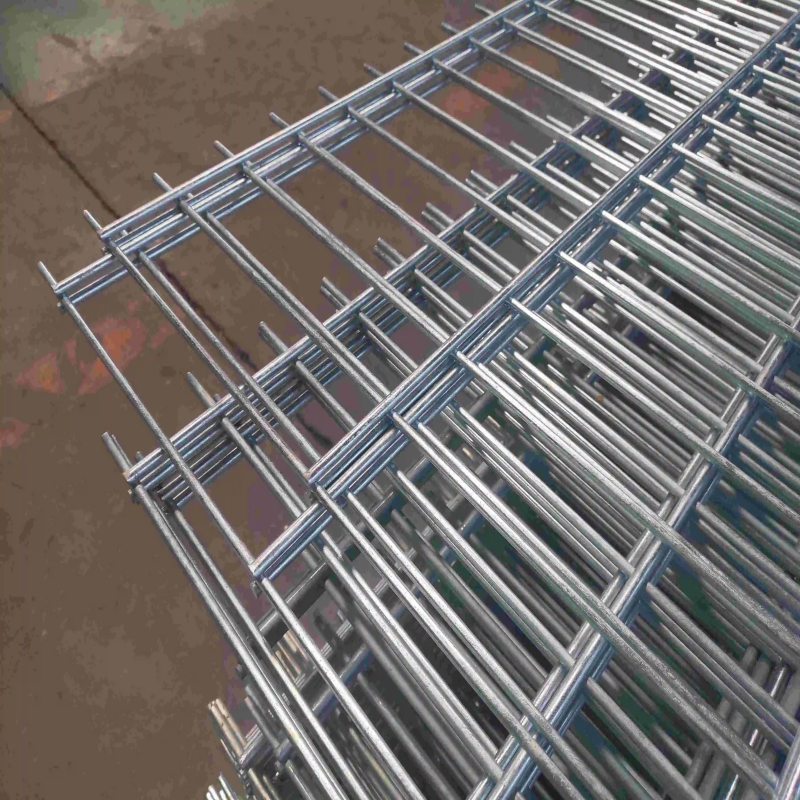

Black wire welded and then hot dipped galvanized B. Powder painted:

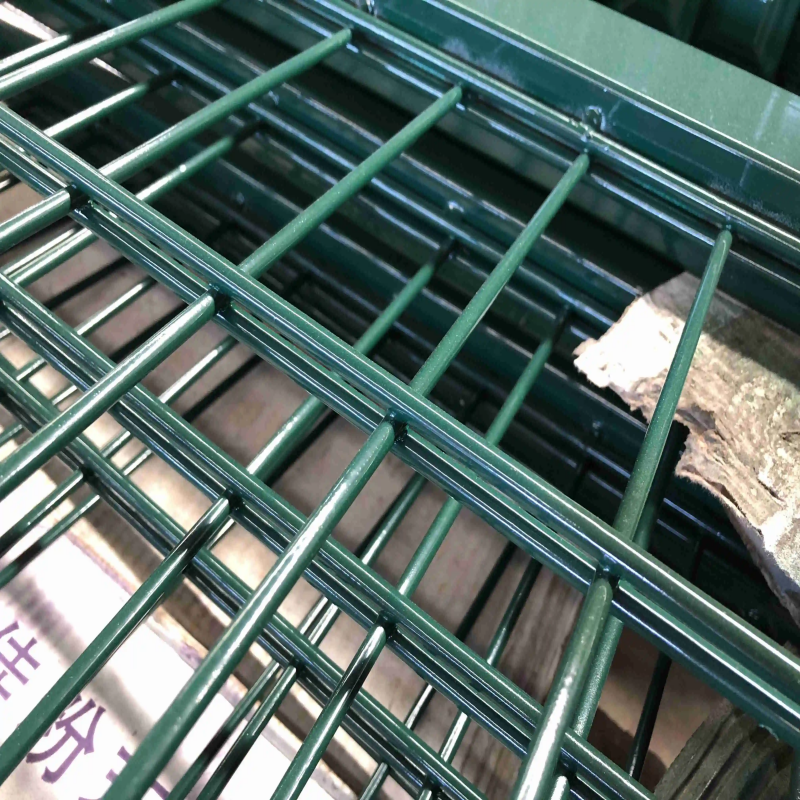

galvanized wire welded firstly and then powder coated
Application:
1. Public building fence
2. Private place fence, Where visibility is desirable
3. Residential perimeter fence
4. In Parks, Zoos and nature reserves
Advantage:
1. Vandal resistant, Low maintenance
2. Strong and reliable security
3. Simple structure, Attractive appearance
4. Easy installation, Convenient transport
Packaging for Double Wire Fence And Accessories:

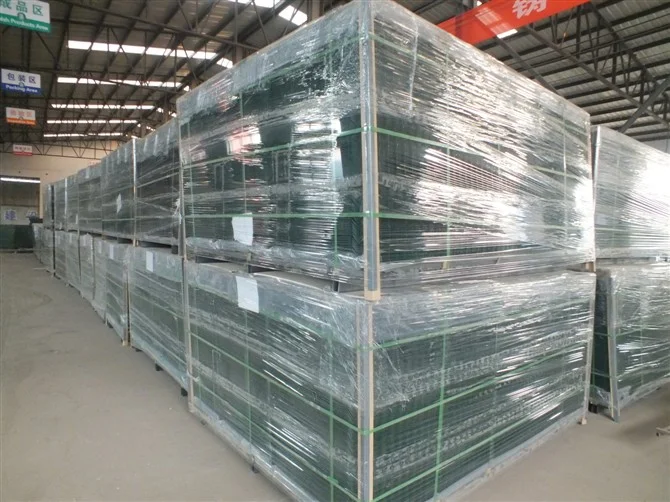

Fence packaging
<1>Plastic film at the bottom to avoid the panel be destroyed <2>4 metal corners to ensure the panel strong and uniform <3>wood plate at the top of pallet to keep the under panel <4>pallet tube size:40*80mm tubes at the botom vertical position
Post & Accessories packaging
Post:

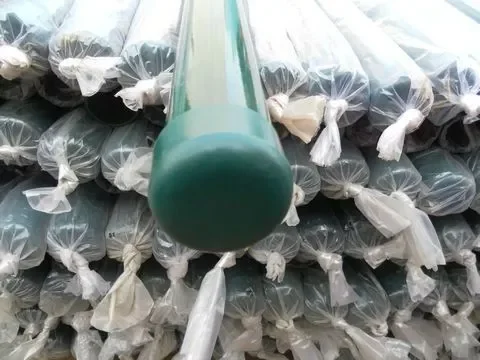

<1>The caps have been installed on the top of post, which reduce your labor cost and installing time <2> Each post are packed by a long plastic bag avoiding damaged by friction <3>All posts are packed by metal pallet for loading and unloading

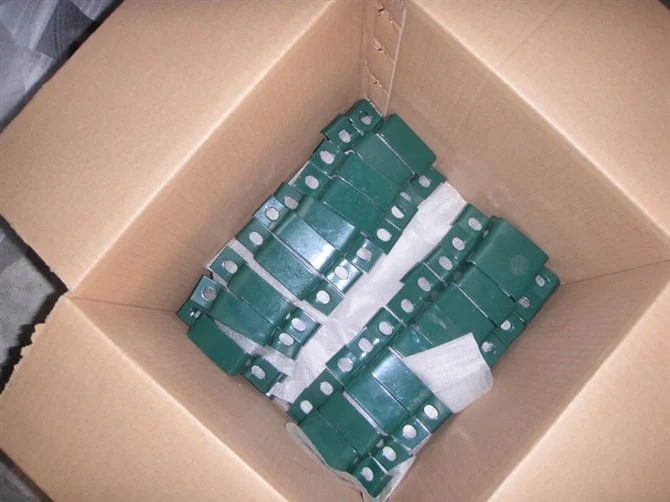

Accessories: Clips and screws are packed by sets, plastic film + carton box. Carton Box Dimensions: 300*300*400m
|
Name
|
Specifications
|
||
|
Panel Height
|
Mesh
|
Panel Length
|
|
|
Double Wire Fence
|
1.03m
|
6/5/6 or 8/6/8 mm
|
2.5m
|
|
1.23m
|
6/5/6 or 8/6/8 mm
|
||
|
1.43m
|
6/5/6 or 8/6/8 mm
|
||
|
1.63m
|
6/5/6 or 8/6/8 mm
|
||
|
1.83m
|
6/5/6 or 8/6/8 mm
|
||
|
2.03m
|
6/5/6 or 8/6/8 mm
|
||
|
Name
|
Specifications
|
||
|
Fence Post
|
Square post : 40*60*1.2/1.5/2.0mm*2.0/2.2 m or 60*60*1.2/1.5/2.0mm*2.4/2.0m
|
||
|
Round post : 48*1.5mm*2.0m ; 48*2.0mm*2.2 m or 60*1.5mm*2.4 m; 60*2.0mm*2.5m
|
|||
|
Peach post ：70*100*1.0mm*2.5m or 70*100*1.2mm*2.5m
|
|||
