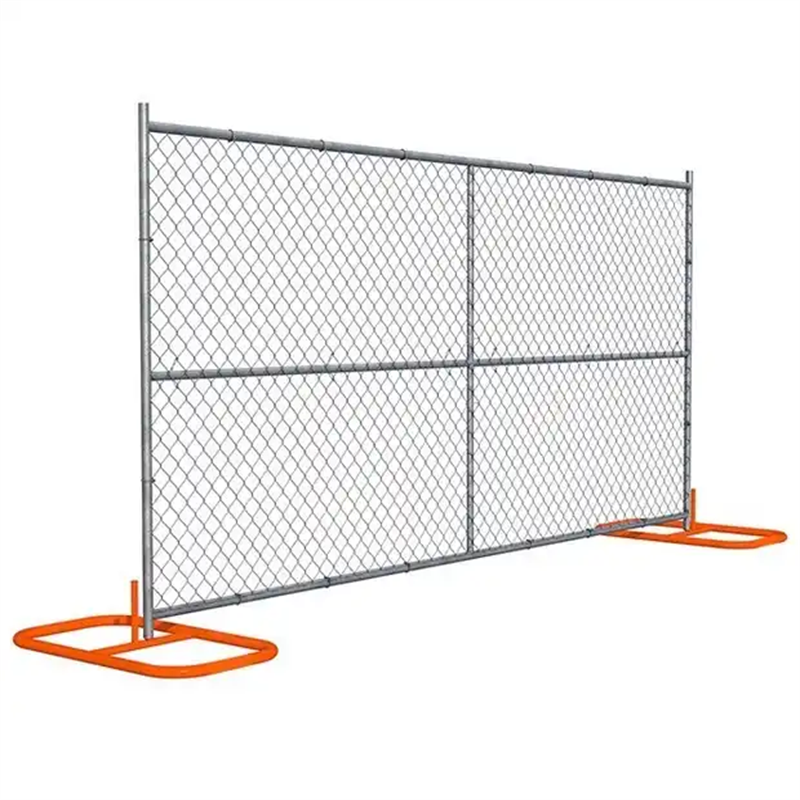

Chain Link Temporary fence panel is also known as American temporary fence, movable fence, construction fence. It is consist of chain link panel, round tube frame, steel feet, optional stays and clamps.This kind of fence has a superior structure, mobility and environmental suitability is very good.
|
Chain Link Temporary Fence Specification
|
|||
|
Fence height
|
4ft, 6ft, 8ft
|
||
|
Fence width/length
|
10ft, 12ft, 14ft, etc
|
||
|
Wire diameter
|
2.7mm, 2.5mm, 3mm
|
||
|
Chain link mesh size
|
57x57mm (2-1/4″), 50x50mm, 60x60mm, etc.
|
||
|
Frame tube O.D
|
33.4mm (1-3/8″), 32mm, or 42mm (1-5/8″) with 0.065″ wall thickness
|
||
|
Vertical/cross brace tube O.D
|
25mm or 32mm with 1.6mm (0.065″) wall thickness
|
||
|

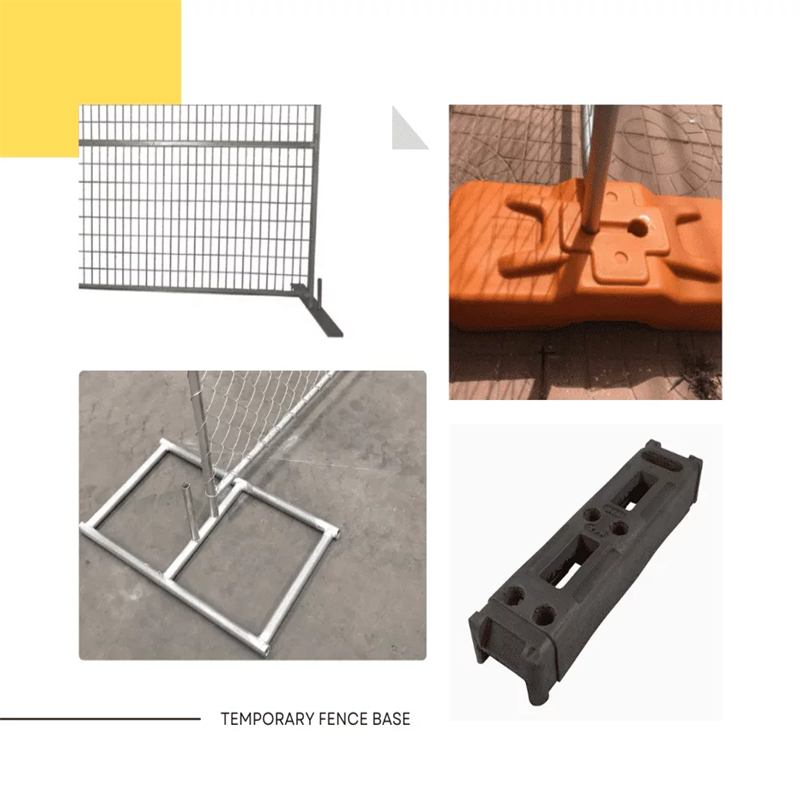

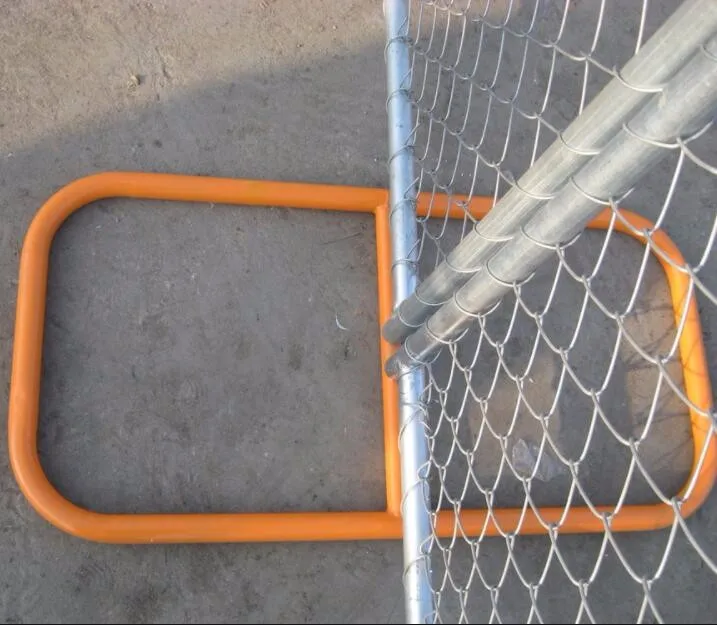

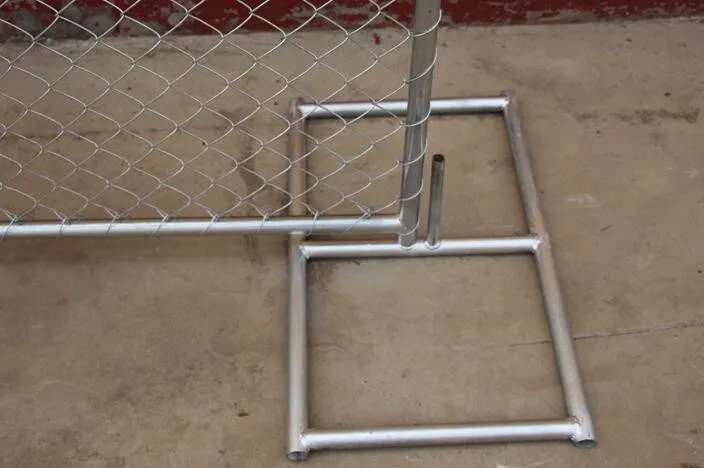

Fence base/stand
|
610x590mm, 762x460mm, etc
|
||
|
Accessories
|
clamps, base feet, tension wire and tension bar (optional)
|
||
|
Material
|
hot dipped galvanized steel
|
||
|
Surface treatment
|
All joints are welded and sprayed with a galvanized paint to cover any exposed metal
|
||
Main Features
1) Simple structure in linear type ,easy in installation and maintenance.
2) Renewable resource, could be used for several years.
3) All welding slag are cleared to insure fence smooth surface.
4) Whole panel (welded mesh panel and frame tube) will be silver spray painted after welding to protect all welding spots.
5) Customized fence shape or specification is also available.
production process:
Pre hot dip gal. wire drawing— cut wire —wire welded—cut the corners of the mesh—Pre hot dip gal. pipes(ends of the horizontal pipes are smashed) welded-polish the welds-paint anti-rust epoxy-spray sliver powder coat on each welds-stacking-packaging
Temporary Fence Advantages :
1. No bolting- No Drilling
2. Self-supporting counter weight base
3. Superior safety and security
4. Very easy to install and relocate
5. Three basic components: fence panel, base and clip
6. Several types of fence panel and base are available.
