A loading day for welded wire mesh panel,3D panel fence and galvanized wire

Welded wire mesh panel

Introduction

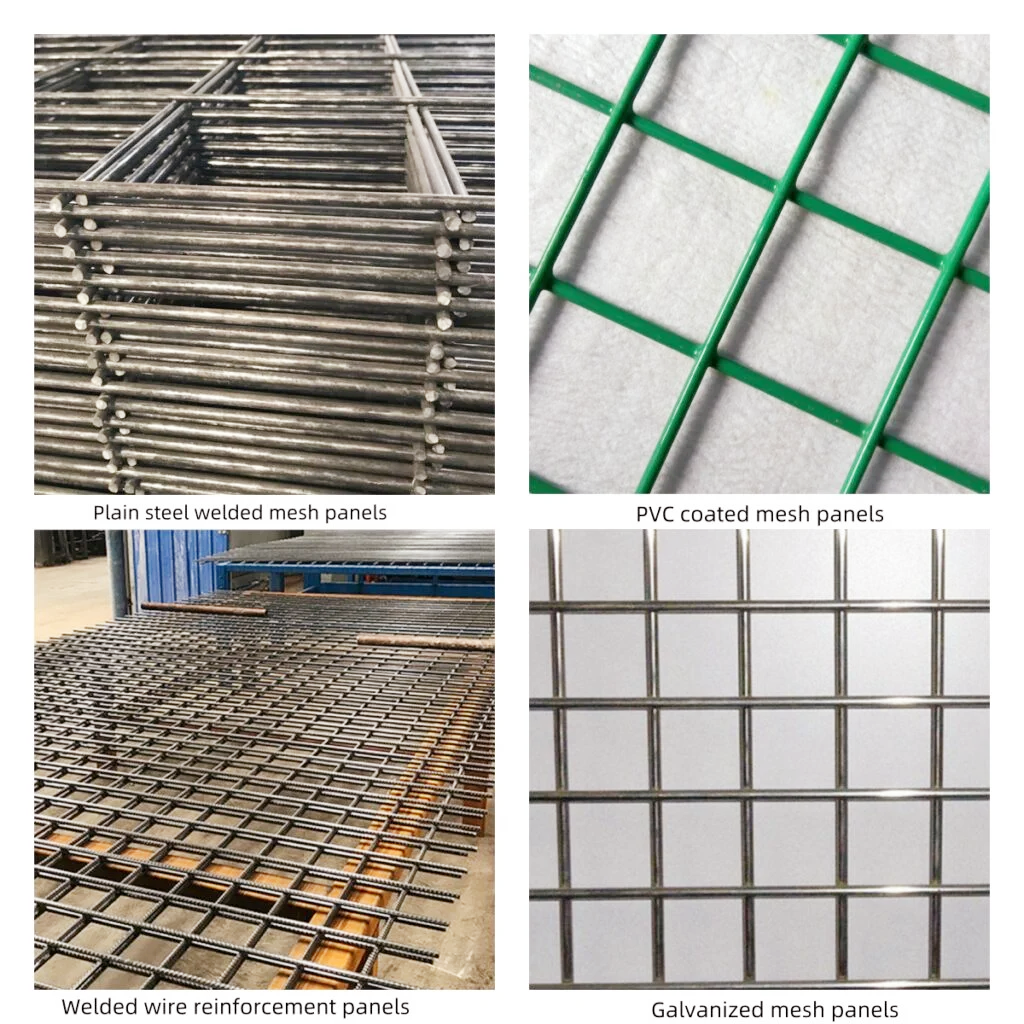

Welded wire mesh panel is made of superior quality  carbon steel wire,electro galvanized,hot dipped galvanized or plastic coated. It is also supplied in plain steel or rebar without galvanizing to save cost.

According to the application,welded wire mesh could be classified three kind:reinforcing welded wire mesh panel,floor heating welded wire mesh panel,general welded wire mesh panel.

微信图片_20231201144644



Specification

mesh wire diameter
in inch in mm wire gauge in mm
1”X1” 25mmX25mm 14#-11# 2.0mm-3mm
2”X1” 50mmX25mm 14#-8# 2.0mm-4mm
2”X2” 50mmX50mm 14#-8# 2.0mm-4mm
3”X2” 75mmX50mm 14#-6# 2.0mm-5mm
3”X3” 75mmX75mm 14#-6# 2.0mm-5mm
4”X2” 100mmX50mm 14#-4# 2.0mm-6mm
4”X4” 100mmX100mm 14#-4# 2.0mm-6mm
5”X5” 125mmX125mm 14#-4# 2.0mm-6mm
6”X6” 150mmX150mm 14#-4# 2.0mm-6mm
Note:special specification can  be customed

微信图片_20240726081352



Application

Welded steel bar grating panels are widely used in construction reinforcement,the ground for tunnels, bridge, highway, airport and wharf, aslo in construction of wall body.

It is also used as wire fencing, animal cage or fence and fence in argriculturer etc.

2x2 Galvanized Welded Wire Mesh Fence Panels in 12 Gauge






Post time: Mar-28-2025
